首页>>产品中心>>PVC管材管件>>给水系列2（美国 ASTM D 1785 ASTM D 2466 (Schedule 40& Schedule 80）

      技术标准： ASTM D 1785 ASTM D 2466

Reducing Bushing

5/4*1/2	42.1	34.3	21.5	19.2	37.6	PA18004
5/4*3/4	42.1	32.9	26.8	24.6	36.9	PA18005
3/2*1/2	48.2	40.1	21.5	19.7	42.2	PA18007
3/2*3/4	48.2	40.2	26.8	20.5	42.2	PA18008
2*1/2	60.3	51.4	21.5	19.5	43.3	PA18011
2*3/4	60.3	51.4	26.8	19.5	43.3	PA18012
5/2*3/2	73.0	61.6	48.5	33.2	55.5	PA18018

Reducing Bushing

3/4*1/2	26.6	21.2	21.5	19.0	27.2	PA18001
1*1/2	33.3	26.5	26.8	18.8	32.2	PA18002
1*3/4	33.4	26.2	21.5	25.1	32.3	PA18003
5/4*1	42.1	34.2	26.8	26.0	37.2	PA18006
3/2*5/4	48.2	40.3	21.5	31.7	38.2	PA18010
2*3/2	60.3	52.1	26.8	32.8	39.6	PA18014

3 Way Elbow

3/4	32.8	26.8	18.6	66.4	PA20075
1	40.8	33.6	23.2	79.7	PA20100
5/4	49.8	42.4	24.0	92.4	PA20125

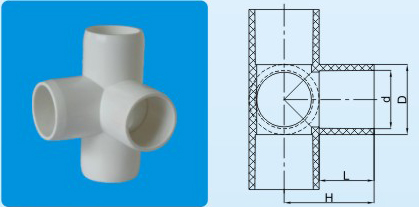

4 Way Elbow

3/4	32.8	26.8	18.6	66.4	PA21075
1	40.8	33.6	23.2	79.7	PA21100
5/4	49.8	42.4	24.0	92.4	PA21125



Reducer Bushing SPGxFPT

3/4*1/2	26.6	20.3	25.6	30.7	1/2	PA19001
1*1/2	33.3	24.5	28.0	34.1	1/2	PA19002
1*3/4	24.5	24.5	28.9	35.0	3/4	PA19003



90° Elbow Male

1/2	27.8	21.5	19.8	29.4	34.1	1/2	PA22050
